Integration Settings

This page helps user to integrate synapseRT with CI tools including Jenkins and Bamboo. Once user configured the integration by adding application, user then can Map Automation Tests to synapseRT Test Cases and Trigger Job/Plan from Test Cycle.

To complete integration settings between synapseRT and CI tools, follow these steps:

1. Click "Administration->Add-ons" from the main menu.
2. Click the "Integration" link from the left panel under the "SYNAPSERT" section.
3. Click "Add" button.
4. Choose Jenkins/Bamboo from "Type" dropdown

5. Specify below information and click "Add" button
   - Name: enter a unique name to refer this application
   - URL: enter the Base URL of the application (please read below on how to find Base URL from your server)
   - User: enter the user name used for authenticating with the application
   Note: The user must have 'Admin' permission to trigger the job/plan that you want to trigger from synapseRT



   Password

   • For Bamboo: enter the password used for authenticating with the application
   • For Jenkins version below 2.96: enter the password used for authenticating with the application
   • For Jenkins version 2.96 and above: enter the API Token used for authenticating with the application

Once an application is added correctly, user can use it at Test Cycle page to create & trigger job/plan.

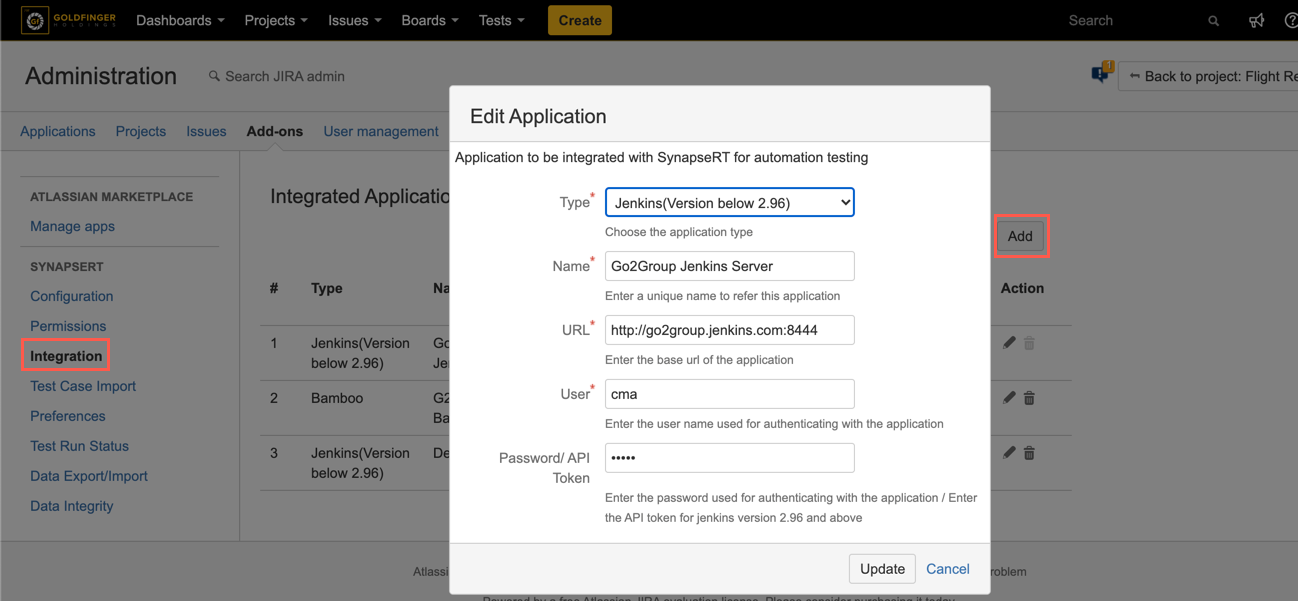

[Screenshot - UG_AT02_v86_Automation_Integration_Add]

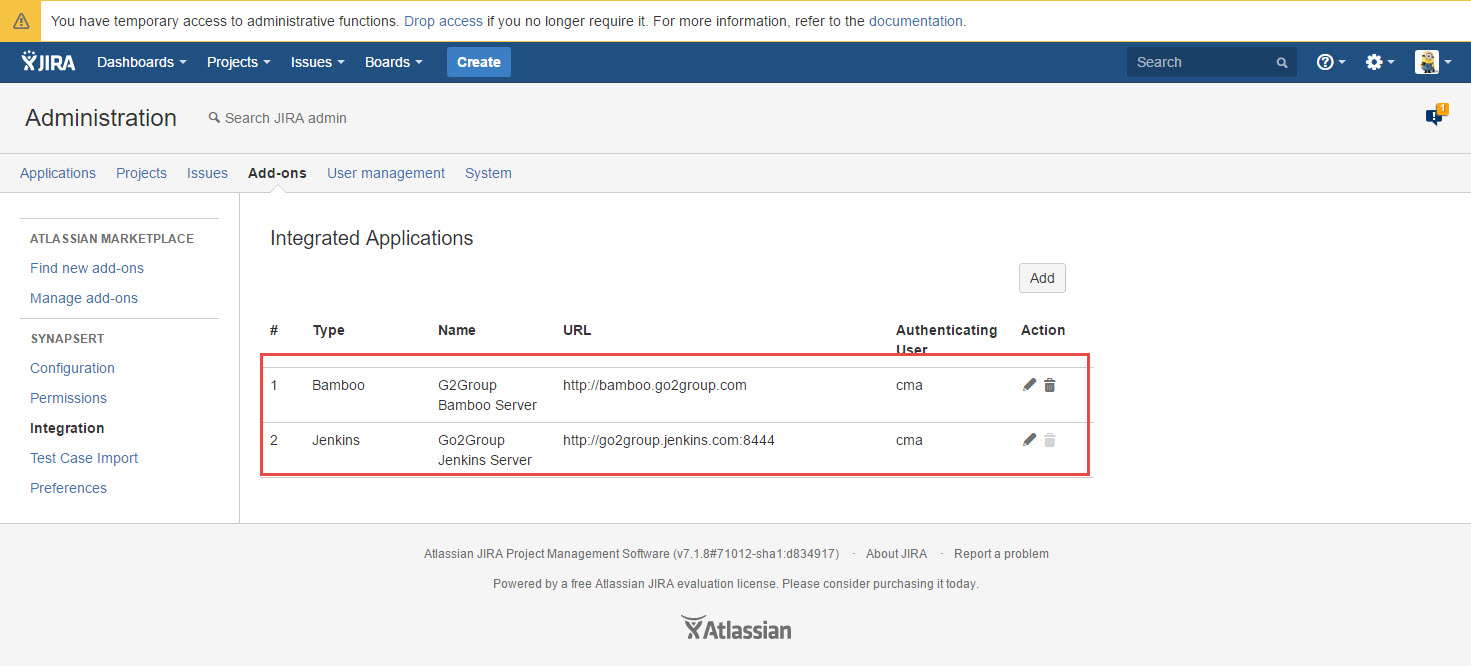

[Screenshot - UG_AT03_v86_Automation_Integration_Done]

Find Jenkins Base URL

1. Login Jenkins server
2. Navigate to: Manage Jenkins->Configure System
3. Jenkins Base URL displayed as "Jenkins URL" in "Jenkins Location" section

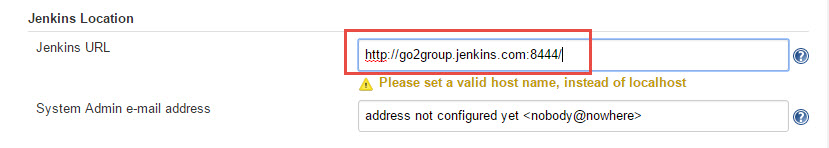

[Screenshot - UG_AT04_v86_Automation_Jenkins_Base_URL]

Find Bamboo Base URL

1. Click the



    icon in the Bamboo header and choose Overview.

2. Click General Configuration (under "System"), in the left navigation panel.
3. You will find Bamboo Base URL from Base URL field.

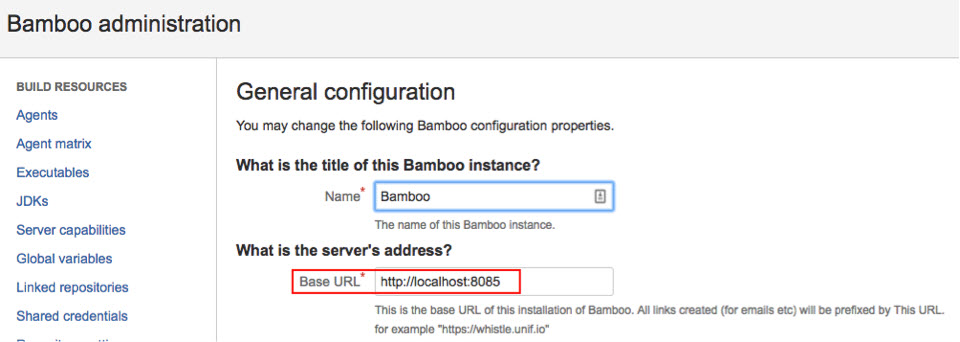

[Screenshot - UG_AT05_v86_Automation_Bamboo_Base_URL]
